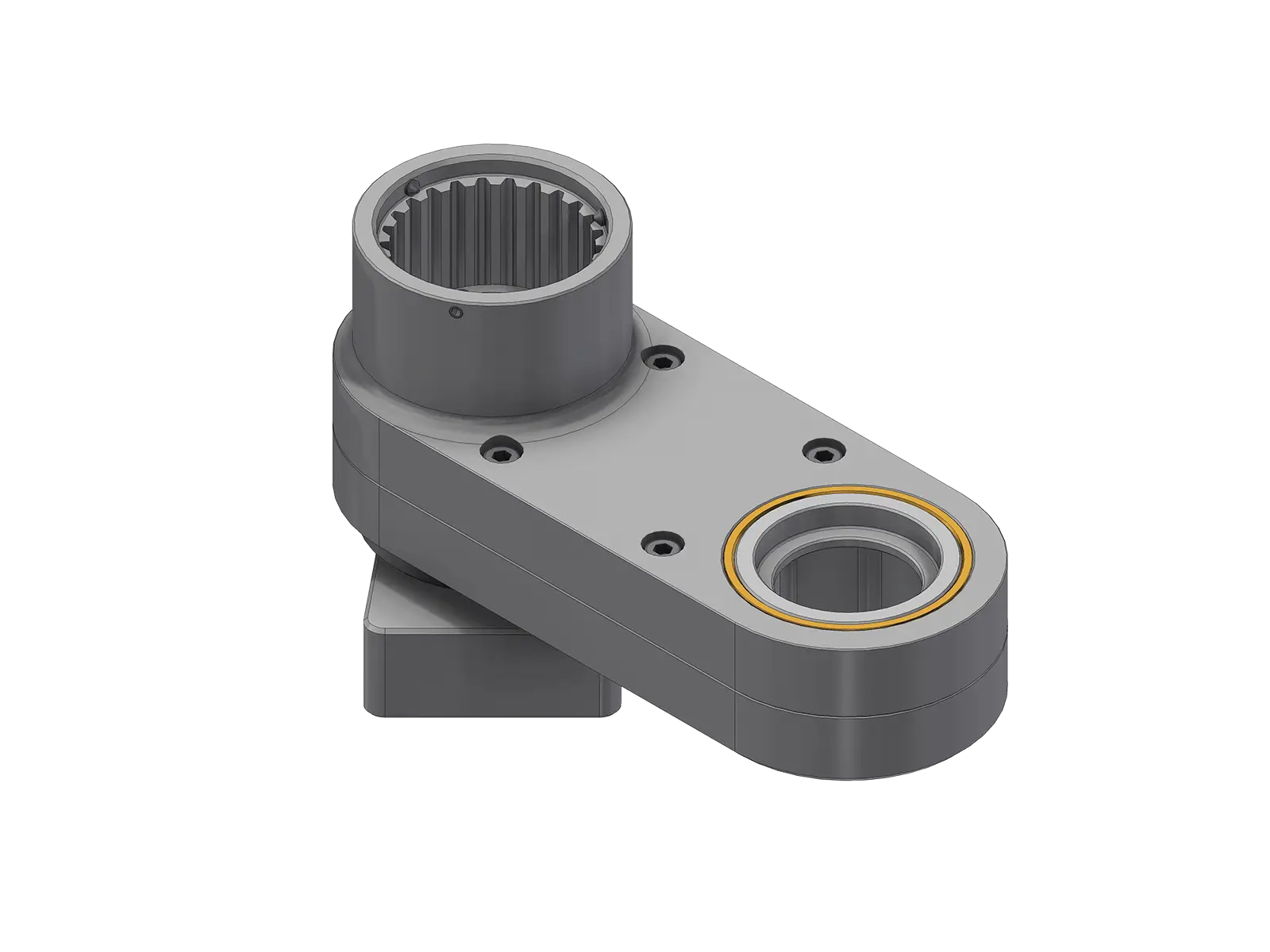

Side-drive type ST

Side-drives enable bolt connections in narrow or offset areas and reliably transmit the torque to the side without any loss of performance.

Compatible

with ITH nut runners

Flexible

movable support arm

Individual

Application-specific output hexagon

Information

Project reports

ITH Smart Tools

With ITH Smart Tools, you can make a wide variety of bolting tools simple and smart – regardless of the device type. Thanks to the cloud connection, you can detect, monitor and document assembly processes centrally, across locations and in real time. Benefit from maximum transparency, efficiency and traceability in your production.

Information

Type ST Specifications

Side-drives extend the range of applications for nut runners in confined space conditions. They enable precise operation even where standard solutions reach their limits.

Optimized for confined spaces
The side-drive enables bolt connections in confined or offset areas where conventional nut runners cannot be used. The lateral output direction ensures precise torque transmission without impairing handling.

Reliable torque transmission
The strong and resistant design ensures low-loss power transmission and guarantees consistently high precision. The torque remains stable and reproducible even under demanding assembly conditions.

Compatible with ITH nut runners
The side-drive can be combined with various ITH nut runner models and is simple to install. It significantly expands the application possibilities for assembling, maintenance and service.

Developed for industrial applications
Whether in mechanical engineering, wind energy or heavy-duty bolting – the side-drive is designed for high loads, a long service life and maximum operational reliability.

Fine tooth mount suitable for ITH nut runners
Square drive input suitable for ITH nut runners
Output hexagon SW, application-specific
Different support variants
For use in radially confined space conditions, long threaded rods (e.g. heat exchangers) or other support options in a radial environment

Type	Order no.	Technical data
		Drive A	Min. output A / F	Max. output A / F	Max. Torque
		[″]	[mm]	[mm]	[Nm]
ST-55	78.00700-2055	1	36	55	2,000*
ST-65	78.00700-2565	1	46	65	2,500*
ST-75	78.00700-4075	1 1/2	55	75	4,000**
ST-85	78.00700-4085	1 1/2	65	85	4,000**

*Toothing suitable for EDS / ADS / PDS 75 – 250.
**Toothing suitable for EDS / ADS / PDS 400 and larger.
Other versions and special designs upon request.
