Electric Nut Runner Type EDS

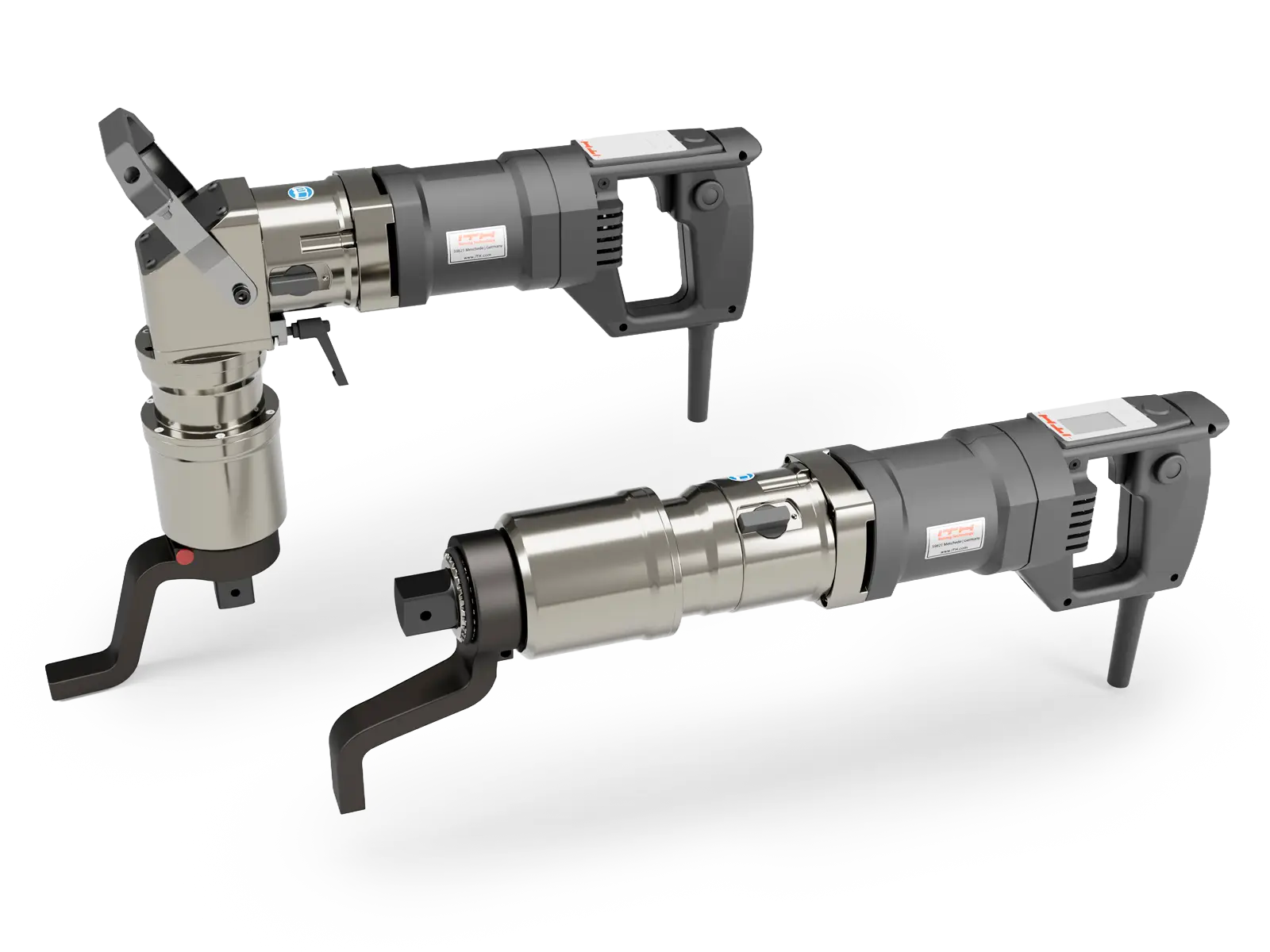

Zwei ITH Drehschrauber Typ EDS. Eine davon als winklige Ausführung.

The ITH EDS nut runner combines precision, efficiency and flexibility. With intelligent control technology, it is the ideal solution for demanding bolt connections.

Precision

Final value accuracy of ±4 %.

Powerful

1,300 W engine (combustion motor - motor)

Efficiency

Automatically adjusts rotational speed for maximum efficiency.

Impressions

Information

Project reports

Impressions

Electric Nut Runner Type EDS in use

The ITH Nut Runner Type EDS impresses with its intelligent control technology and maximum precision. Even under demanding conditions and in international machine parks, the EDS delivers consistent results with maximum efficiency and safety. Whether on construction sites, in heavy industry or in complex assembly processes – the EDS guarantees reliable performance and optimum process control.

ITH Smart Tools

With ITH Smart Tools, you can make a wide variety of bolting tools simple and smart – regardless of the device type. Thanks to the cloud connection, you can detect, monitor and document assembly processes centrally, across locations and in real time. Benefit from maximum transparency, efficiency and traceability in your production.

Information

Electric Nut Runner Type EDS Specifications

The ITH Nut Runner Type EDS is an impressive electric nut runner for industrial applications with state-of-the-art control electronics and a high final value accuracy of ±4 %. Thanks to its automatically speed adjustment and strong and resistant design, the EDS is ideal for international machine parks. Whether for precise bolt connections or in challenging assembly processes – the EDS guarantees maximum reliability and process control.

Precise control for maximum efficiency
The ITH Nut Runner Type EDS offers comprehensive control electronics that continuously monitor the bolting process and optimally adjust the rotational speed.

High-quality technology for demanding applications
The compact planetary gearbox ensures high rotational speeds and efficiency, while the powerful “Made in Germany” motor guarantees a long service life.

Maximum safety and flexibility
Automatic switch-off and free rotation prevent torsional binding. The automatic adjustment to 50 Hz or 60 Hz makes the EDS ideal for international machine parks.

Reliable precision
With a final value accuracy of ±4 % and versatile support options, the EDS is perfectly tailored to individual requirements.

Comprehensive control electronics: Continuously monitors the bolting process and adjusts the rotational speed to the bolting application to ensure consistent results.
Automatically unscrews: Automatically switches off after reaching the previously set torque and turns freely to prevent the insert from torsional binding on the screw head. This protects the material and saves time.
Construction site suitability: Automatically indicates fluctuations in the power supply due to operation on generators.
International flexibility: Automatically detects and sets | to adjust to 50 Hz or 60 Hz, ideal for international machine parks.

2 gear stages: Allows you to change between high and low gear, with automatic change with the “Auto-Shift” option.
High final value accuracy: Delivers precise results with an accuracy of ±4 %*.
Safety turning knuckle: Always guarantees optimum positioning of the ITH EDS for maximum safety and efficiency. This structure is clear, concise and ideal for display in two gaps.

* For comparable bolting conditions

ITH type	ITH order no.	Max. Torque (gear 1)		Max. Rotational speed (gear 2)	Torque output drive A	Gearbox diameter d		EDS, straight				EDSw, angled
ITH type	ITH order no.	[Nm]	[ft-lbs]	[rpm]	[″]	[mm]	[″]	[mm]	[″]	[kg]	[lbs]	[mm]	[″]	[kg]	[lbs]
EDS-40	2x.30040-yzz7	400	295	30	3/4	70	2.76	468	18.42	5.2	11.46	243	9.57	6.2	13.67
EDS-400	2x.30400-yzz7	4,000	2,960	3	1 1/2	93	3.66	568	22.36	9.1	20.06	342	13.47	10.1	22.27
EDS-600	2x.30600-yzz7	6,000	4,440	3	1 1/2	105	4.13	590	23.23	14.7	32.41	364	14.33	15.7	34.61
EDS-800	2x.30800-yzz7	8,000	5,900	1.4	1 1/2	125	4.92	644	25.35	21.0	46.30	417	16.41	22.0	48.50
EDS-1000	2x.31000-yzz7	10,000	7,350	1.4	1 1/2	127	5.00	644	25.35	21.0	46.30	417	16.41	22.0	48.50
EDS-1300	2x.31300-yzz7	13,000	9,550	0.9	2 1/2	180	7.09	700	27.56	44.0	97.00	495	19.49	28.0	61.73
