Speed
up to 35 rpm.
Accuracy
±4 %
up to 7,000 Nm
Impressions
Options
The ADS 4 with the Basic option operates with precise, previously set torque and guarantees maximum process reliability for bolt connections. Ideal for industrial production applications with constant torque requirements.
With the ALPHA option, angle-controlled tightening occurs, which enables particularly precise bolt connections. This advanced control method ensures optimum control over the entire bolting process.
The Docu documentation software offers a comprehensive solution for process monitoring and documentation, including ALPHA. This allows all bolting processes to be tracked seamlessly and quality-relevant data to be stored professionally
Advantages
High process reliability thanks to direct parameterization on the device
Precise status display via color LCD with OK and NOK signal
Full torque without gear changes thanks to 1-speed solution
Ergonomic, compact design for continuous industrial use
Compatible with the CAS Cordless Alliance System for flexible battery use
With ITH Smart Tools, you can make a wide variety of bolting tools simple and smart – regardless of the device type. Thanks to the cloud connection, you can detect, monitor and document assembly processes centrally, across locations and in real time. Benefit from maximum transparency, efficiency and traceability in your production.
Information on
Intelligent process control

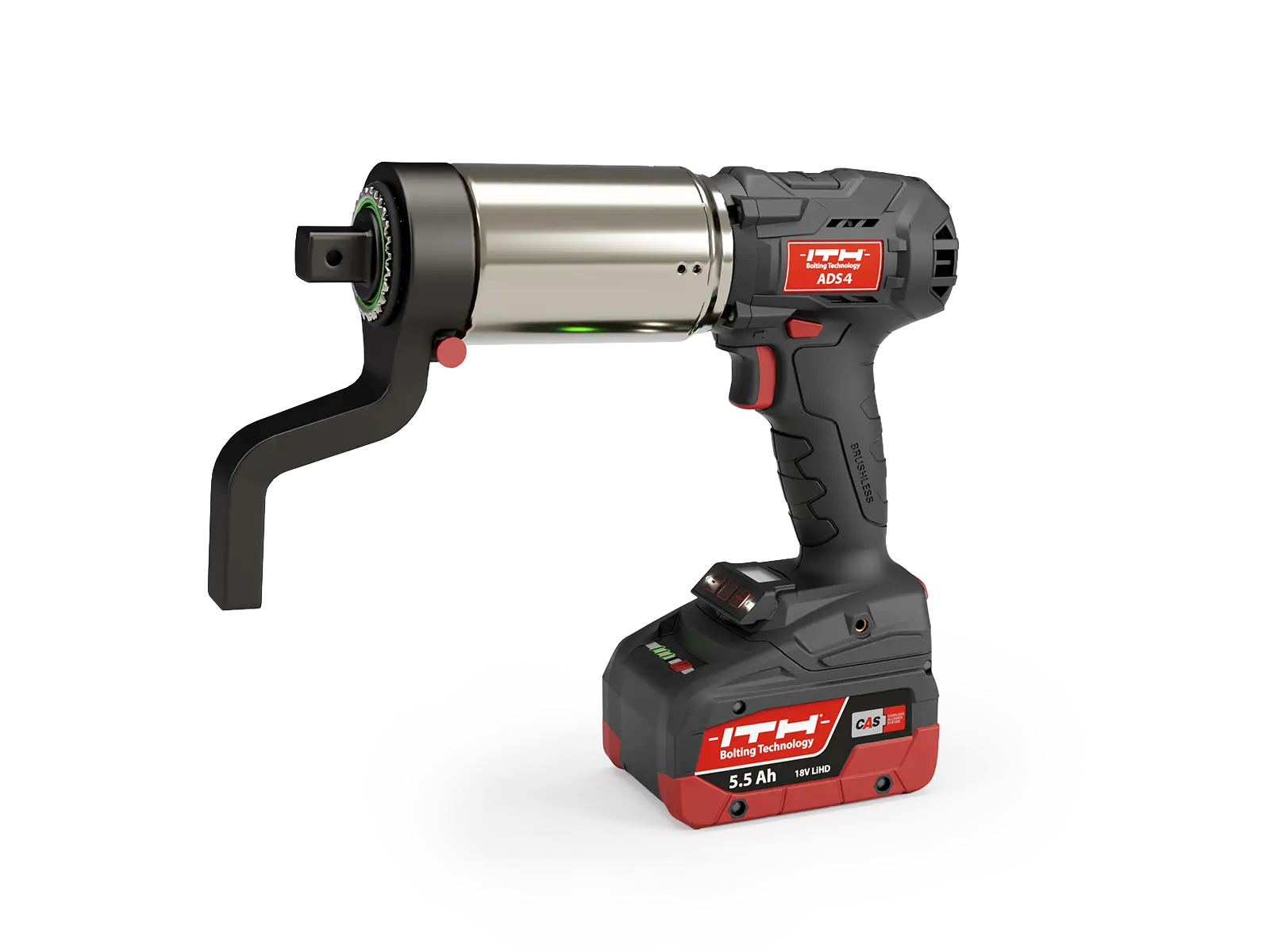

The ADS 4 allows you to set | to adjust all relevant screwdriving parameters directly on the device. Torque, rotation angle / angle of rotation, unit selection as well as standby and free-running times can be conveniently configured via the integrated color LCD display. The OK and NOK display supports clear and safe process evaluation directly during application.
Powerful drive technology
The compact high-powered planetary gearbox ensures high rotational speeds and efficient work processes. The 1-speed technology provides a constant power level across the entire torque range and enables precise bolt connections without any loss of power.
Maximum flexibility in use
As part of the CAS Cordless Alliance System, the ADS 4 is compatible with powerful LiHD batteries in various capacities. In combination with ITH accessories and customized support solutions, the ADS 4 can be optimally adapted to different industrial applications.
* For comparable bolting conditions
ITH RAM system – low-reaction bolting
The ITH RAM system enables bolt connections to be tightened and loosened completely without a reaction arm. The tightening torque is applied axially, which means that no bending or shearing forces are generated in the bolt connection. This increases work safety, shortens the screwing time and protects adjacent components from damage. The innovative ITH RAM Disc also offers reliable protection against the connection loosening automatically.
You can find out more about the ITH RAM system here.
| Type | Order no. | Max. Torque | Max. Rotational speed | Torque output drive A |
Gearbox diameter d |
Length | Weight* | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| [Nm] | [ft-lbs] | [rpm] | [″] | [mm] | [″] | [mm] | [″] | [kg] | [lbs] | ||
| ADS50-4 | 24.312.0050-y | 500 | 370 | 35 | 3/4 | 55 | 2.2 | 242 | 9.5 | 3.5 | 7.7 |
| ADS100-4 | 24.312.0100-y | 1,000 | 740 | 13 | 3/4 or 1 | 70 | 2.8 | 270 | 10.6 | 3.9 | 8.6 |
| ADS150-4 | 24.312.0150-y | 1,500 | 1,110 | 8.2 | 1 | 70 | 2.8 | 297 | 11.7 | 4.2 | 9.3 |
| ADS230-4 | 24.312.0230-y | 2,300 | 1,700 | 6.5 | 1 | 72 | 2.8 | 303 | 11.9 | 4.5 | 9.9 |
| ADS320-4 | 24.312.0320-y | 3,200 | 2,360 | 4.5 | 1 | 79 | 3.1 | 319 | 12.6 | 5.6 | 12.3 |
| ADS470-4 | 24.312.0470-y | 4,700 | 3,470 | 3.2 | 1 1/2 | 90 | 3.5 | 337 | 13.3 | 8.8 | 19.4 |
| ADS700-4 | 24.312.0700-y | 7,000 | 5,160 | 2.3 | 1 1/2 | 96.5 | 3.8 | 364 | 14.3 | 9.2 | 20.3 |
ADS 4: y = 0
ADS 4 incl. ALPHA: y = 1
ADS 4 Basic: y = 3
ADS 4 Docu incl. ALPHA: y = 1-24
*Weight without reaction arm and battery
The scope of delivery can be put together individually.
Further options:
Seals and certificates
Seals and certificates
Contact us
Further products
Independent
No power or compressed air connection necessary
Strong and resistant
Compact, durable design
Mobile & flexible
Compact design for simple transportation
Reliable
Up to 950 bar for precise bolt connections
Independent operation
Power grid-independent operation thanks to standard compressed air system
Compact & mobile
Lightweight, strong and resistant design for quick and simple transport
Standard use
Optimized for medium duty cycles
Suitable for construction sites
Compact and weight-optimized
Efficient
Fast pressure build up for shorter work cycles
Flexible
Compatible with torque wrenches
Mobile
Independent of power or compressed air supply
Lightweight & compact
Advantageous for tight space conditions
