Hydraulic power unit Hydro-DAX V-2 series

Innovative hydraulic power units for precise and efficient bolt connections in industry

Drive

Electric

Flexible

Compatible with torque wrenches

Efficient

Fast pressure build up for shorter work cycles

Information

Project reports

ITH Smart Tools

With ITH Smart Tools, you can make a wide variety of bolting tools simple and smart – regardless of the device type. Thanks to the cloud connection, you can detect, monitor and document assembly processes centrally, across locations and in real time. Benefit from maximum transparency, efficiency and traceability in your production.

Information

Hydro-DAX V-2 Specifications

The Hydro-DAX V-2 series is the logical further development for reliable and efficient bolted connections in everyday industrial applications. With state-of-the-art hydraulic technology, vertical design and comprehensive system expertise, ITH is setting standards in performance and user-friendliness.

Powerful hydraulics for every task
The Hydro-DAX V-2 series achieves a market-leading maximum pressure of 850 bar, ensuring a fast, precise oil supply even for demanding applications. The vertical designing guarantees an optimized power-to-weight ratio and minimal space requirements.

Modular compatibility for all systems
Thanks to universal interfaces, the power unit is flexibly usable – for hydraulic torque wrenches with single and double hose systems as well as lifting cylinders from any manufacturer. This versatility enables efficient processes in a wide range of industrial fields.

Long-term reliability and high safety
A strong and resistant aluminum housing with multi-ribbed tank and a powerful fan ensure constant temperature compensation – even under increased workloads or in demanding environments such as international construction sites.

Intuitive operation and maintenance-friendly
The series is optionally available with a digital pressure gauge, which displays torque and pressure with high precision. The bolted protective frame improves maintenance accessibility and the cable carrier enables convenient, easy-to-use storage of the supply cables and remote control.

Vertical designing for minimum power-to-weight ratio
Maximum pressure up to 850 bar (12,330 psi)
Compatibility with one and two-hose systems
Operation with hydraulic torque wrenches and multi-purpose lifting cylinders
Aluminum multi-ribbed tank
Electric fan for temperature equalization (also cools when stationary)
Frequency-independent oil bath electric motor (50/60 Hz)
Cable carrier for safe storage of remote control and supply cable
operating instruction

Optional equipment:

Digital pressure gauge (precise display of torque and pressure, ±1.0% or ±0.5% relative accuracy)
Oil cooler for extreme duty cycles and increased ambient temperatures
Docu digital documentation system for seamless tracking
Bolted protective frame for simple maintenance and improved power-to-weight ratio
Automated bolting and angle-controlled tightening (especially when used in conjunction with ITH torque wrenches)

Hydro-DAX type	Order no.	Max. Pressure	Dimensions (LxWxH)	Weight*	Tank volume max	Performance
Hydro-DAX type	Order no.	[bar]	[mm]	[kg]	[l]	[kW]
Hydro-DAX V12-2	50.01112-x-y	850	300 x 300 x 475	20	1,4 / 1,0	0,55
Hydro-DAX V18-2	50.01118-x-y	850	300 x 300 x 515	25	1,8 / 1,4	0,7
Hydro-DAX V21-2	50.01121-x-y	850	337 x 310 x 555	33	2,2 / 1,6	1,4

90 – 120 V: x = 09170 (1-phase)
190 – 240 V: x = 19170 (1-phase)
380 – 420 V: x = 40370 (3-phase)

Standard: y = { }
With oil cooler: y = 01

*Including oil, for 380 – 420 V version: weight reduction of 0.5 kg.

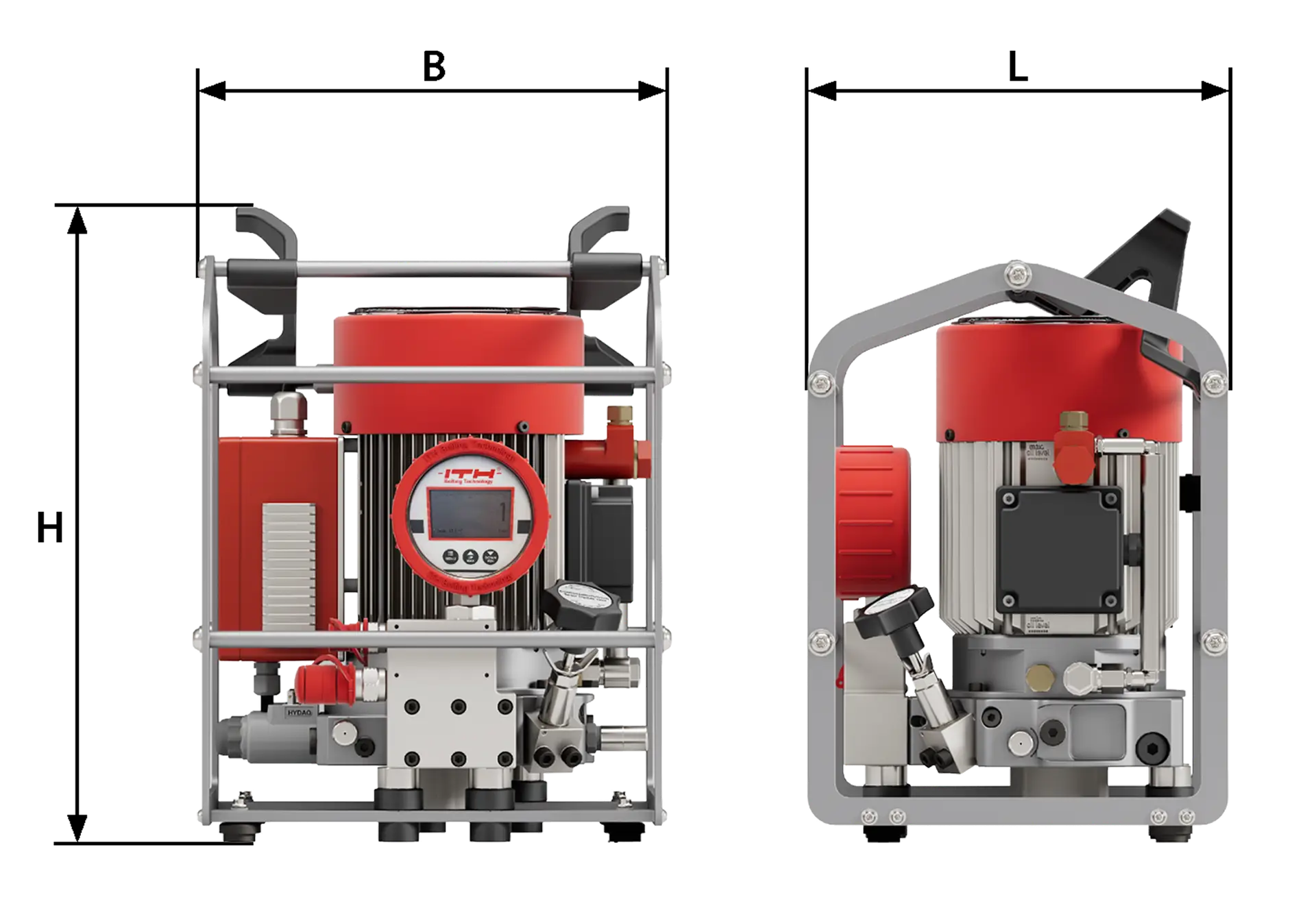

Insert picture of technical dimensions!

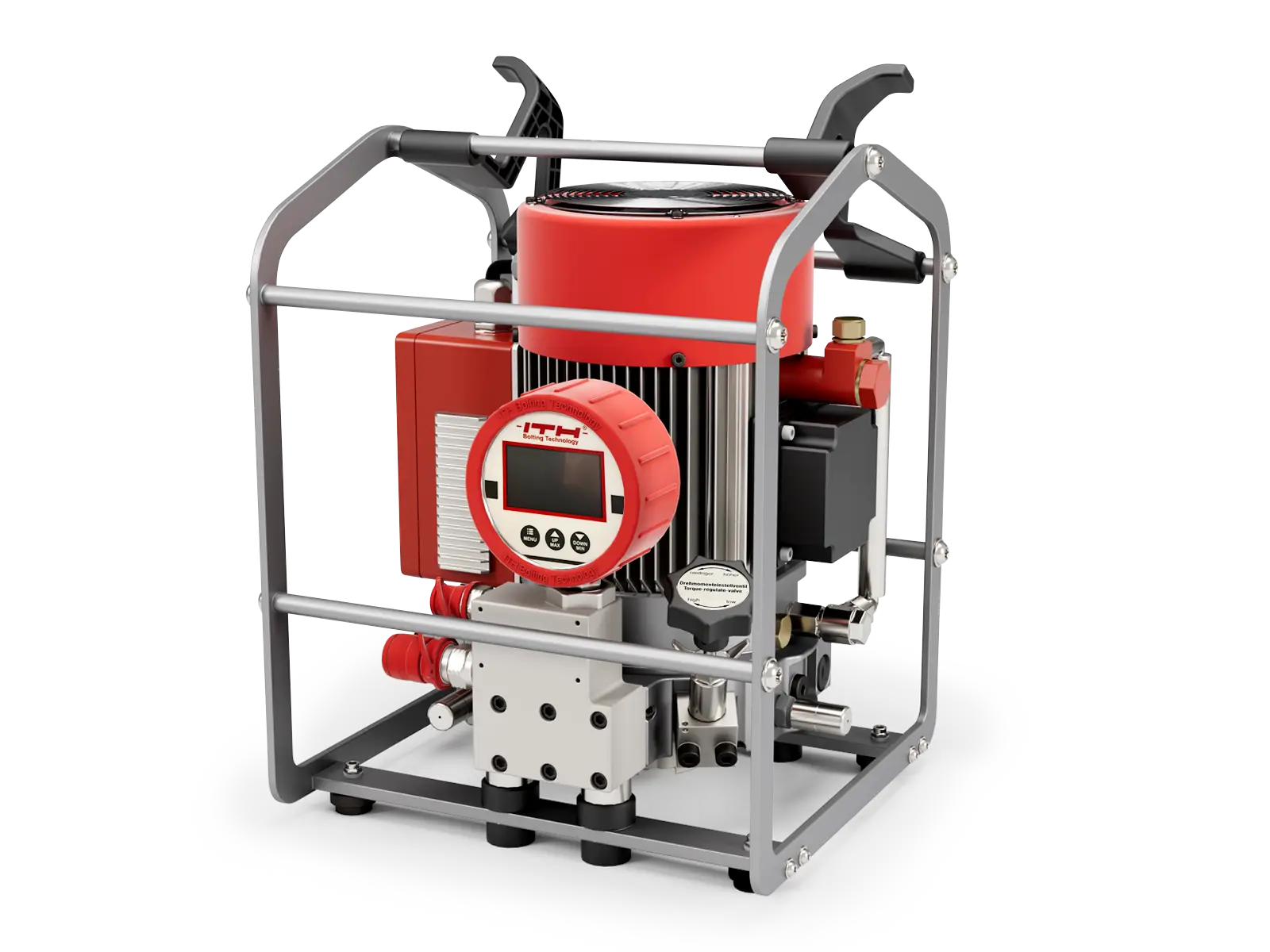

Electric hydraulic power unit Hydro-DAX V-2 (selected design and pressure phase)
High pressure hose lines
operating instruction
Optional accessories upon request
