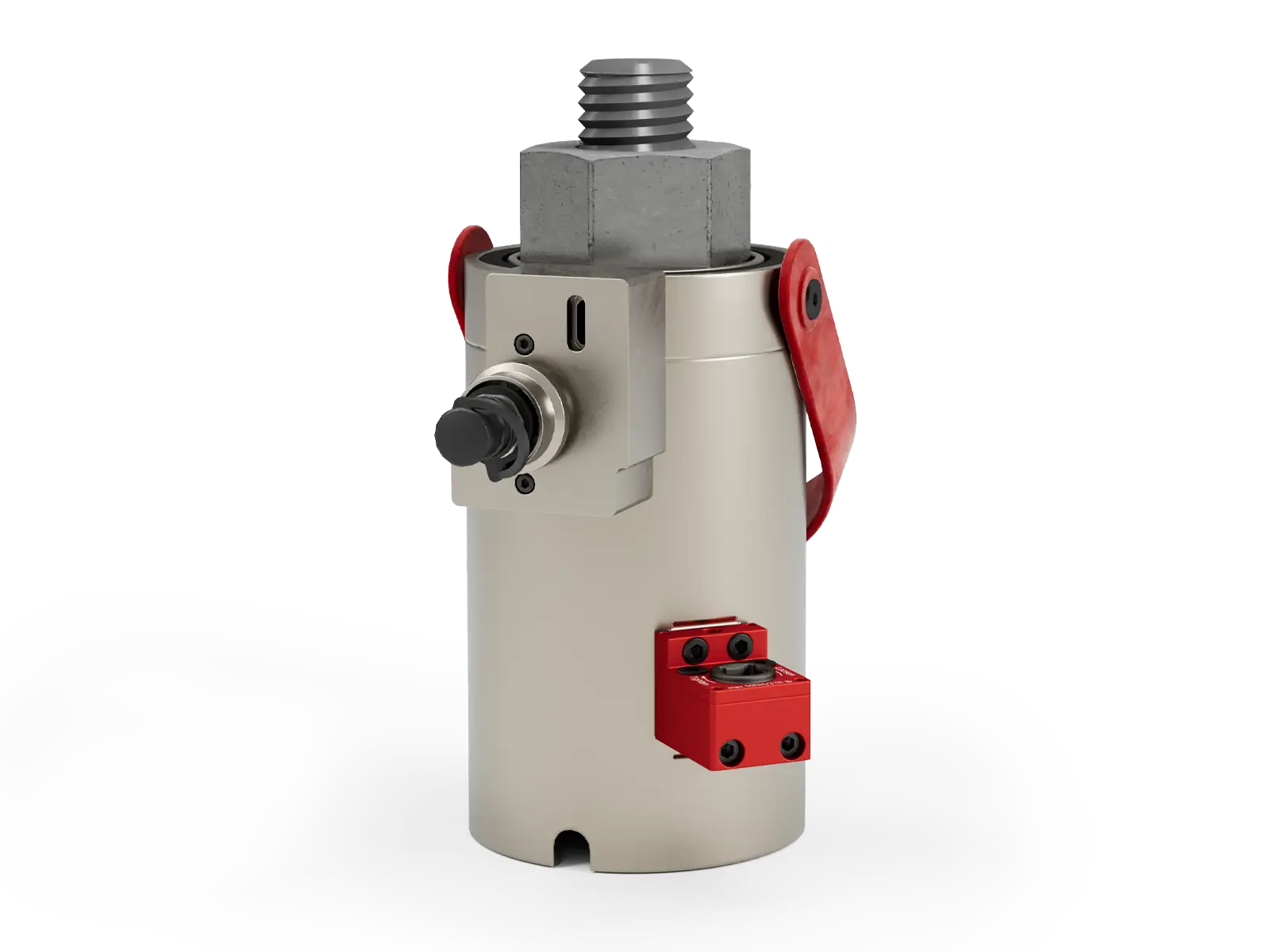

Bolt Tensioning Cylinder Type ESH

Efficient pre-tensioning for foundation bolt connections: The Bolt Tensioning Cylinder Type ESH impresses with its open design and flexible application options for long thread projections.

Open design

Hollow piston cylinder, for long thread projections

Flexible lock nut

Enables quick pushing

Preload of the ESH

can be transferred to bolt connections

Information

Project reports

ITH Smart Tools

With ITH Smart Tools, you can make a wide variety of bolting tools simple and smart – regardless of the device type. Thanks to the cloud connection, you can detect, monitor and document assembly processes centrally, across locations and in real time. Benefit from maximum transparency, efficiency and traceability in your production.

Information

Bolt Tensioning Cylinder Type ESH Specifications

The Bolt Tensioning Cylinder Type ESH offers innovative solutions for the safe and efficient pre-tensioning of foundation bolt connections, heat exchangers and flanges. Thanks to its open design, flexible equipment and modular customization options, it is optimally tailored to the requirements of industrial applications. Discover all the details, functions and equipment options in the following sections.

Open design for maximum flexibility
The Bolt Tensioning Cylinder type ESH is characterized by its open design as a hollow piston cylinder. This design allows it to be used with long thread projections, as is often the case with foundation bolt connections, heat exchangers or flanges.

Flexible lock nut for individual adjustment
The integrated, flexible lock nut ensures simple and quick adjustment to different screw situations. This ensures precise and secure pre-tensioning even with changing requirements.

Automatic piston return for efficient processes
The automatic piston return increases work efficiency and minimizes manual effort. After pre-loading, the piston automatically returns to its starting position, which speeds up the work process and simplifies operation.

Modular designing for maximum flexibility

Scraper on the collar reliably protects the printing chamber from contamination.
Support arm: Multiple reaction arms possible, suitable for various bolt/nut configurations according to DIN EN ISO, ASME, ANSI, MSS, HV, national standards as well as ITH and customer-specific nuts.
Turning sleeve: Encloses the nut radially and can be adapted to the respective application. The turning sleeve can be omitted for round nuts with radial holes.
Hydraulic connections: Choice of vertical or horizontal, with or without cycle counter, with or without ITH Multi-Tensioning.
Protective cap with handle (optional): Increases ergonomics and contactors the hydraulic connection.

Flexible lock nut for variable applications
The open designing of the hollow piston cylinder enables quick and simple pushing onto long thread projections. The transmission of the preload into the bolt connection can occur flexibly – either via the ITH lock nut, a standard hexagon nut or the ITH split groove. This allows the Bolt Tensioning Cylinder to be optimally adapted to different bolting applications.

Optional equipment for more efficiency and contactor

ITH patented cycle counter on the hydraulic connection: Detects and displays the pressure cycles driven as an indicator for maintenance and documentation.
NIOX surface coating: Nickel-chrome coating for increased corrosion protection.
ITH patented protective cap with handle: Contactors the hydraulic connection and improves ergonomic handling.
Direct gear drive: speeds up the application of the nut, enables torque-controlled drive with torque wrench (1/4″ or 1/2″ socket).

Type	Order no.	Nominal diameter d	Width across flats ( A/F-width ) s \| AF		Stroke		Min. thread projection h2
Type	Order no.	Nominal diameter d	[mm]	[″]	[mm]	[″]	[mm]	[″]
ESH36 – 575	33.03419-XXXX	1-3/8″ (M36)	60	2 3/8	15	0.6	170	6.7
ESH39 – 614	33.03471-XXXX	1-1/2″ (M39) #10 Grade 75 #11 Grade 75 1-1/4″ 150 KSI 1-3/8″ 150 KSI	65	2 4/7	12	0.5	190	7.5
ESH39 – 650	33.04427-XXXX		60	2 3/8	15	0.6	180	7.1
ESH39 – 650	33.02757-XXXX		65	2 4/7	13	0.5	190	7.5
ESH39 – 650	33.03727-XXXX		65	2 4/7	25	1	210	8.3
ESH39 – 724	33.02727-XXXX		55	2 1/5	14	0.4	258	10.1
ESH45 – 950	33.03404-XXXX	1-3/4″ (M45)	75	3	15	0.6	232	9.1

Insert picture of technical dimensions!

Bolt Tensioning Cylinder Type ESH
Operating instructions
Optional accessories upon request

The scope of delivery of the ITH Bolt Tensioning Cylinder can be individually tailored to your specific requirements. Thanks to the modular design of the clamping cylinder, various components can be flexibly configured to ensure the optimum solution for your bolting task. This gives you a perfectly coordinated system for efficient and safe assembly processes.

Product information for download
