Strong and resistant
High abrasion resistance
Flexible
Small bending radius
Inspected | to check up to 3,000 bar
With ITH Smart Tools, you can make a wide variety of bolting tools simple and smart – regardless of the device type. Thanks to the cloud connection, you can detect, monitor and document assembly processes centrally, across locations and in real time. Benefit from maximum transparency, efficiency and traceability in your production.
Information
Maximum safety at high pressures
The high-pressure hoses are designed for maximum operating pressures of up to 3,000 bar and are available in various versions – from standard to protective sheaths and variants with safety springs. This ensures maximum safety in demanding bolting processes.
Abrasion-resistant and durable
The resistant outer layer is specially protected against abrasion and mechanical stress. At the same time, the strong and resistant wire reinforcement ensures a long service life even under intensive operating conditions.
Flexibly usable
Thanks to the small bending radius, the hoses are ideal for tight assembly environments. Different lengths and color-coded pressure phases facilitate selection and safe use on Bolt Tensioning Cylinders.
Compatible with the ITH system approach
In combination with ITH hydraulic power units and coupling systems, the high-pressure hoses fit seamlessly into the overall ITH system. This supports safe, efficient and reproducible bolting – proven worldwide and over decades.
Order no. Key: 34.x00yy-zzzz
→ x = abbreviation for pressure
→ yy = series
→ zzzz = abbreviation for length
| Pressure max. |
Hose color | Print Abbreviation |
|---|---|---|
| 1,500 bar | silver | 1 |
| 2,500 bar | Blue with black lettering | 2 |
| 3,000 bar | Blue with white lettering | 3 |
| 4,000 bar | Red | 4 |

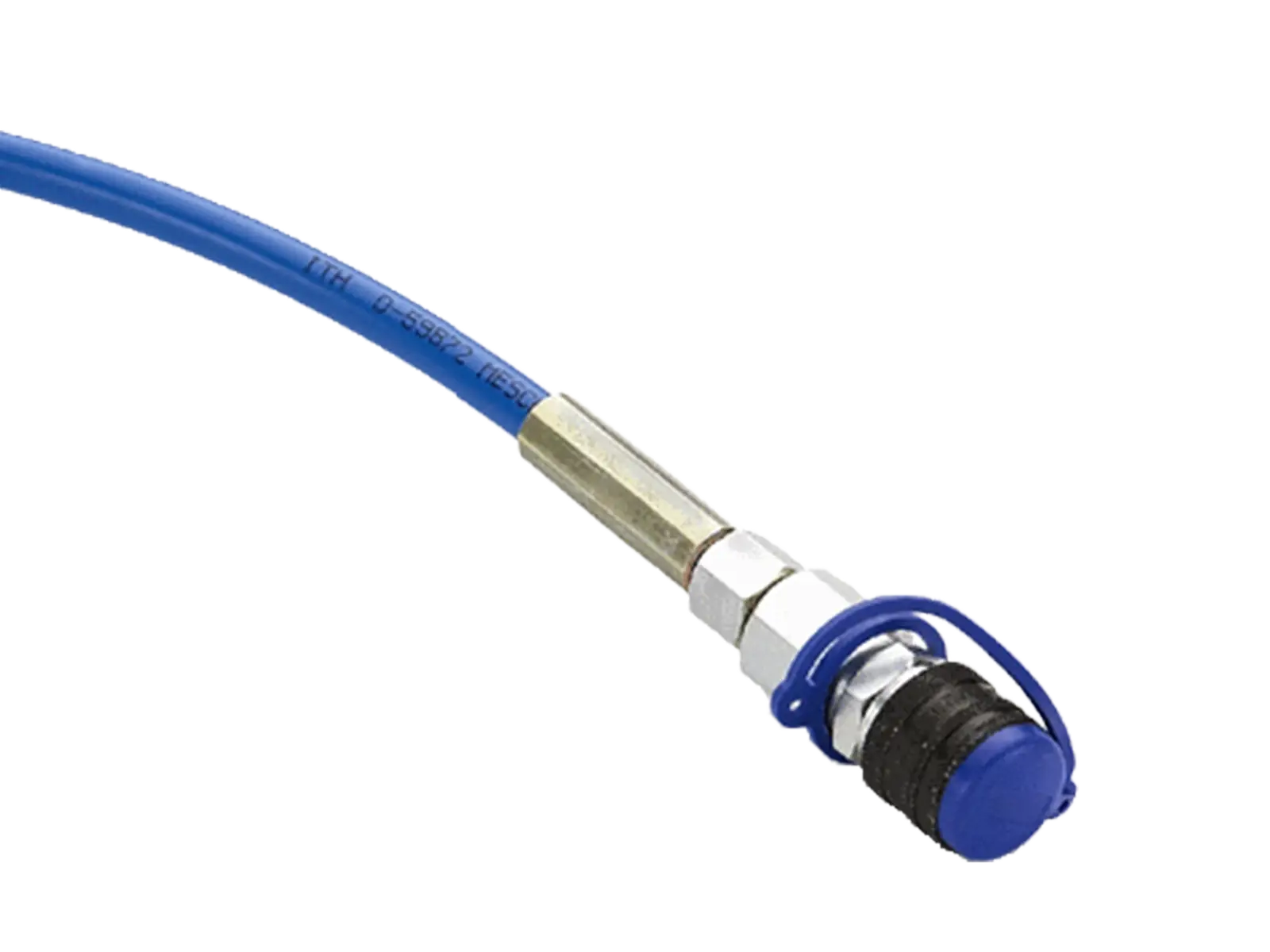

Series 30 Standard high pressure hose line

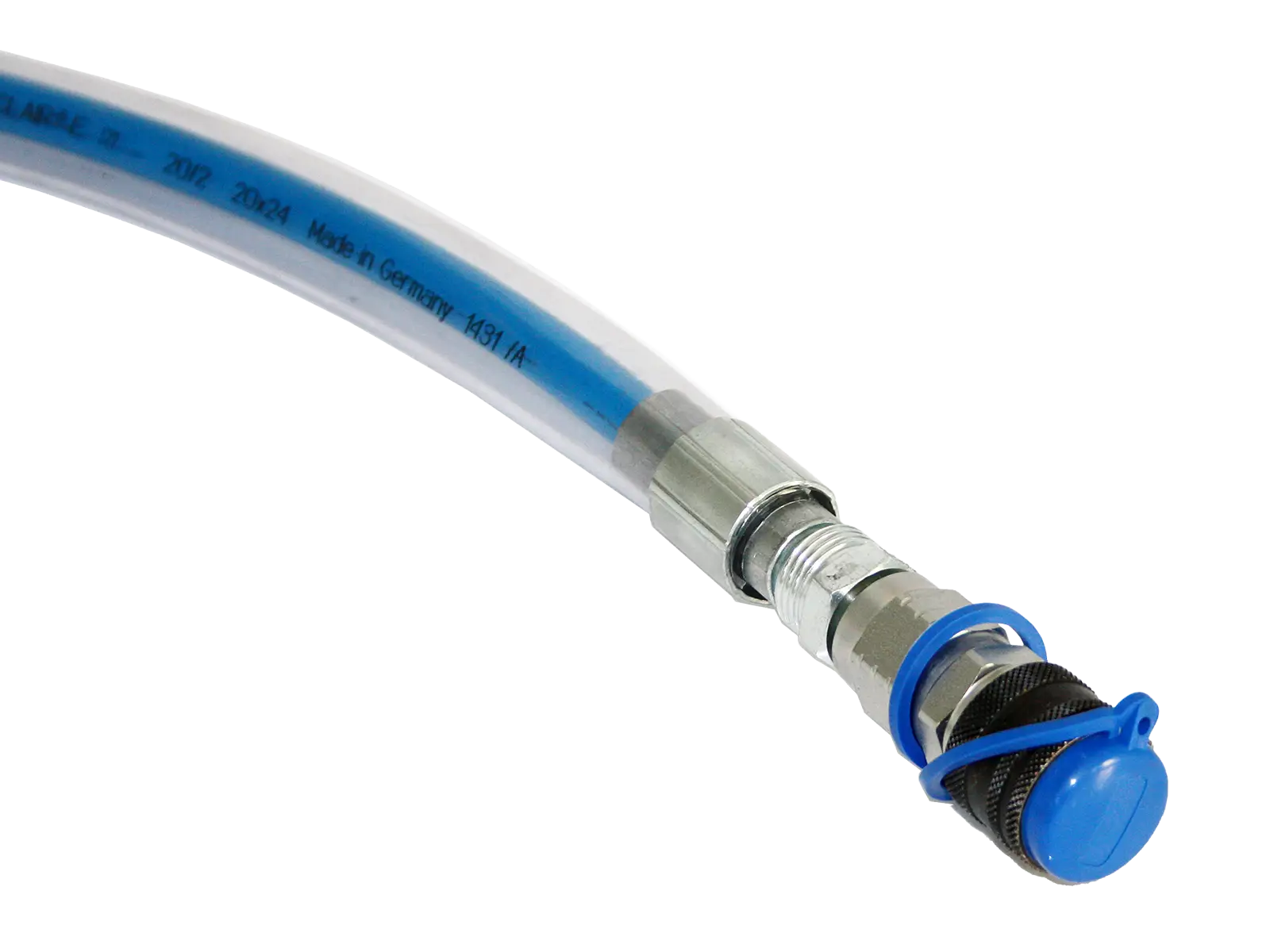

Series 32 High pressure hose line with protective sheath

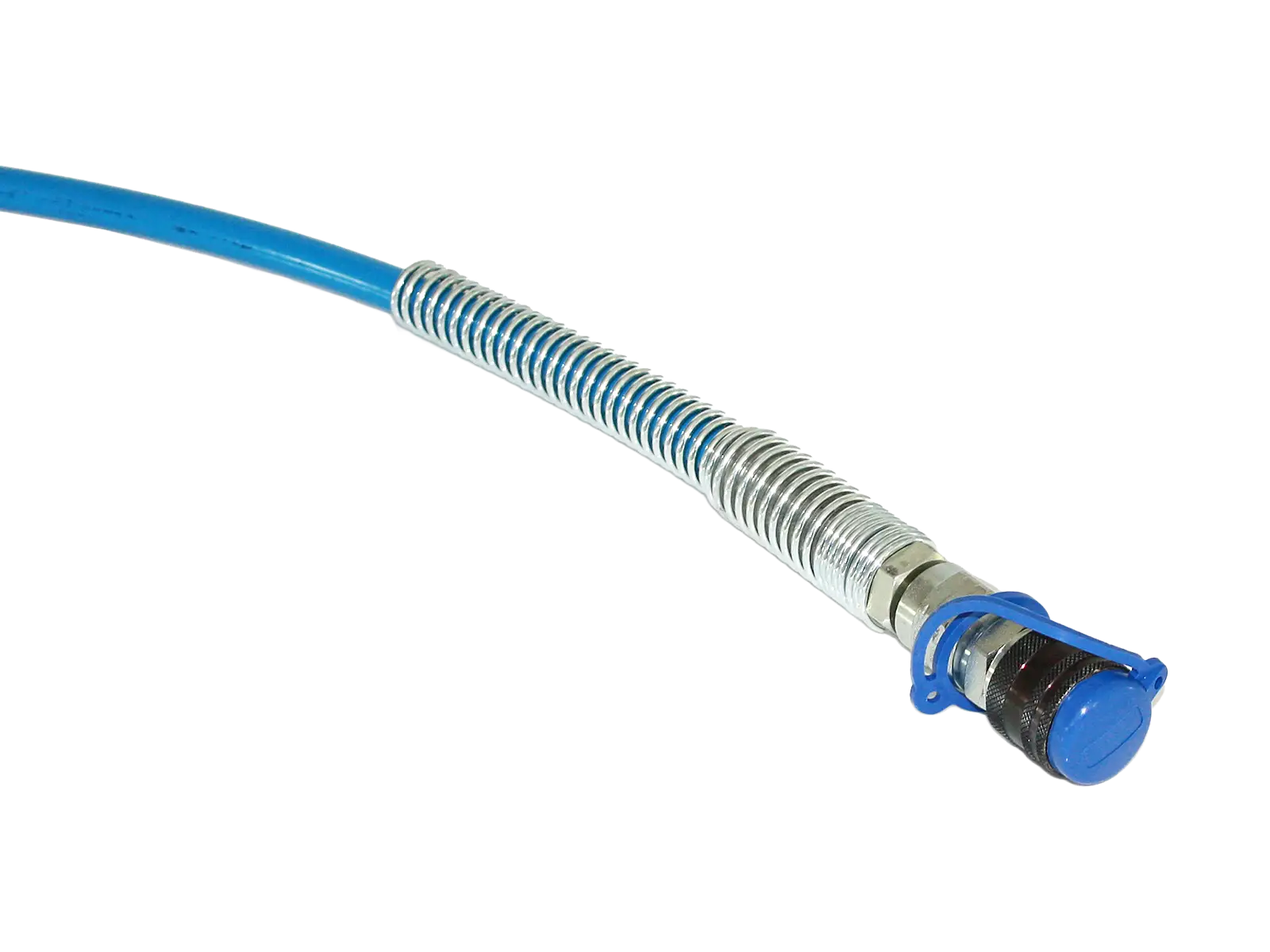

Series 33 High pressure hose line with safety spring (kink protection)

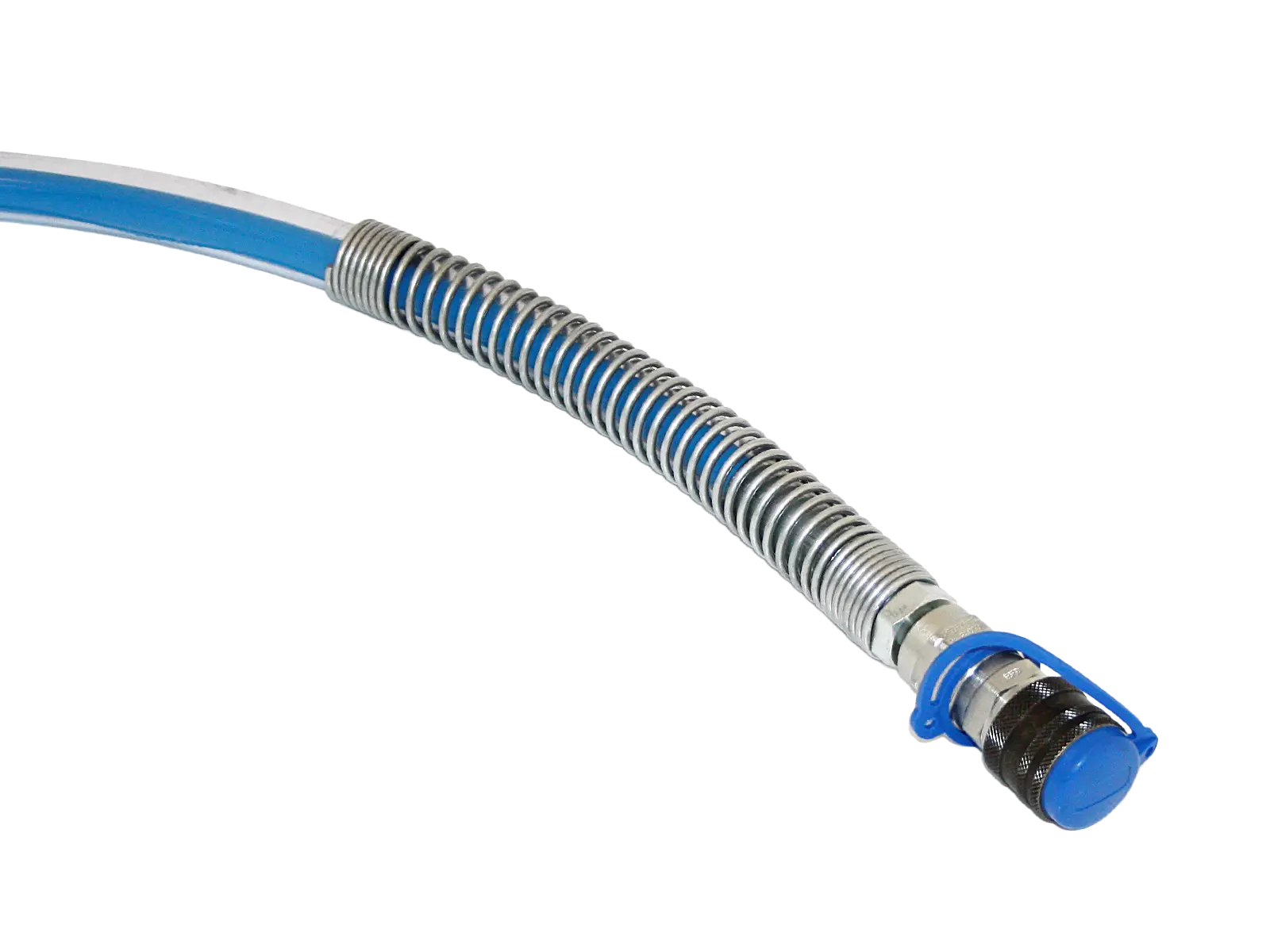

Series 34 High pressure hose line with protective sheath and safety spring
| Length | Length Abbreviation |
|---|---|
| 2,0 m | 0020 |
| 3,0 m | 0030 |
| 4,0 m | 0040 |
| 5,0 m | 0050 |
| 6,0 m | 0060 |
other lengths deliverable
