Torque Wrench Type CX

Hydraulischer Drehmomentschrauber Typ CX mit asymmetrischer Abstützung

Zwei hydraulische Drehmomentschrauber des Typs CX-5 von ITH mit verschiedenen Abstützvarianten nebeneinander.

The Hydraulic Torque Wrench Type CX combines innovative technology with a compact design for precise and reliable bolting.

Compact

for radially confined space conditions

Flexible

for a wide range of support conditions

Efficient

Fast work cycles thanks to 2-hose system

Impressions

Product advantages

Information

Project reports

Impressions

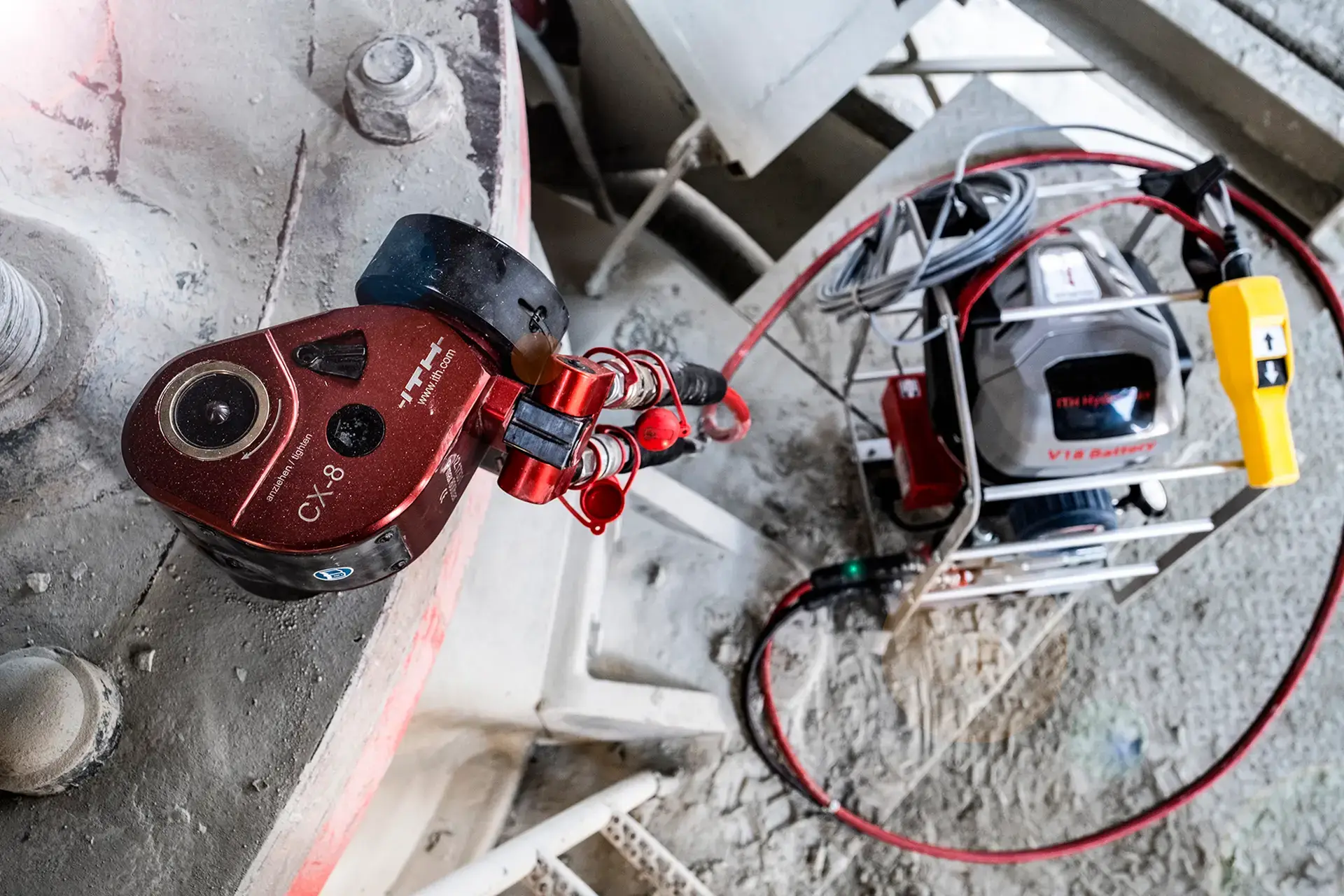

Torque Wrench Type CX in use

The Hydraulic Torque Wrench Type CX from ITH is the perfect solution for demanding industrial applications. With innovative functions, a weight-optimized design and a strong and resistant construction, it is equally impressive for service and production applications. Discover the advantages that make the type CX an indispensable tool.

Advantages

Product benefits at a glance

The Hydraulic Torque Wrench Type CX offers numerous advantages that make it the ideal solution for demanding bolting tasks. With its universal usability, flexible support options and innovative 2-hose system, it combines efficiency, precision and versatility in a weight-optimized design.

Ideal for service and production applications

Different support conditions & radially confined space conditions

Fast-operating 2-hose system with high-flow coupling

Weight-optimized design and maintenance-friendly construction

Compatible with commercially available power wrench sockets (KSE).

Suitable for bolts that are difficult to loosen

ITH Smart Tools

With ITH Smart Tools, you can make a wide variety of bolting tools simple and smart – regardless of the device type. Thanks to the cloud connection, you can detect, monitor and document assembly processes centrally, across locations and in real time. Benefit from maximum transparency, efficiency and traceability in your production.

Information

Torque Wrench Type CX Specifications

The Torque Wrench Type CX combines innovative technology with maximum functionality. Thanks to its modular design, it can be flexibly adapted to different applications. The strong and resistant construction guarantees a long service life, while the ergonomic design enables simple handling.

Precision in every application
The CX hydraulic torque wrench has been specially developed to ensure maximum precision even under extreme conditions. With its wide torque range, it is ideal for a wide variety of industrial applications.

Innovative technology for efficiency
The integrated 2-hose system enables fast work cycles, while the dual-swivel rotating connection ensures optimum positioning of the hydraulic hose.

User-friendliness redefined
The tool-free adjustment of the handle and the “Click & Change” system make the type CX particularly user-friendly. The asymmetrical reaction arm also ensures stability in confined space conditions.

Tool-free insert change with “Click & Change” system
Asymmetrical reaction arm with 360° positioning
High-performance housing made of UL material (ultra-light, high-strength)

Fast-operating 2-hose system with high-flow coupling
Dual-swivel rotating connection, able to rotate in two dimensions
Ergonomic handle with tool-free adjustment

Type	Max. Torque		L1		L2		B		B1		R		H		Weight		Order no.
Type	[Nm]	[ft-lbs]	[mm]	[″]	[mm]	[″]	[mm]	[″]	[mm]	[″]	[mm]	[″]	[mm]	[″]	[kg]	[lb]	Order no.
CX 1	1,200	855	128	5.04	100	3.94	58	2.28	–	–	24	0.94	58	2.28	2.0	4.4	56.10001-5000
CX 2	2,000	1,475	143	5.63	114	4.49	61	2.40	77	3.03	25	0.98	63	2.48	2.1	4.6	56.10002-5000
CX 5	5,000	3,688	175	6.89	136	5.35	73	2.87	93	3.66	33	1.30	91	3.58	4.0	8.8	56.10005-5000
CX 8	8,000	5,900	198	7.80	147	5.79	85	3.35	108	4.25	40	1.57	110	4.33	5.8	12.8	56.10008-5000
CX 12	12,800	9,441	222	8.74	165	6.50	104	4.10	126	4.96	47	1.85	122	4.80	9.1	20.1	56.10012-5000
CX 18	18,000	13,276	263	10.35	196	7.72	112	4.41	133	5.24	53	2.09	134	5.28	12.0	30.4	56.10018-5000
CX 28	28,000	20,652	310	12.20	235	9.25	129	5.08	150	5.90	60	2.56	155	6.10	19.0	49.4	56.10028-5000
CX 40	40,000	29,502	335	13.19	253	9.96	159	5.91	180	7.09	66	3.23	185	7.28	28.5	75.0	56.10040-5000
CX 60	60,000	44,254	413	16.26	305	12.00	170	6.69	–	–	80	3.19	210	8.27	42.0	92.6	56.10060-5000
CX 80	80,000	59,005	445	17.52	334	13.15	190	7.48	–	–	85	3.35	231	9.09	57.0	125.7	56.10080-5000
