Torque Wrench Type DRS

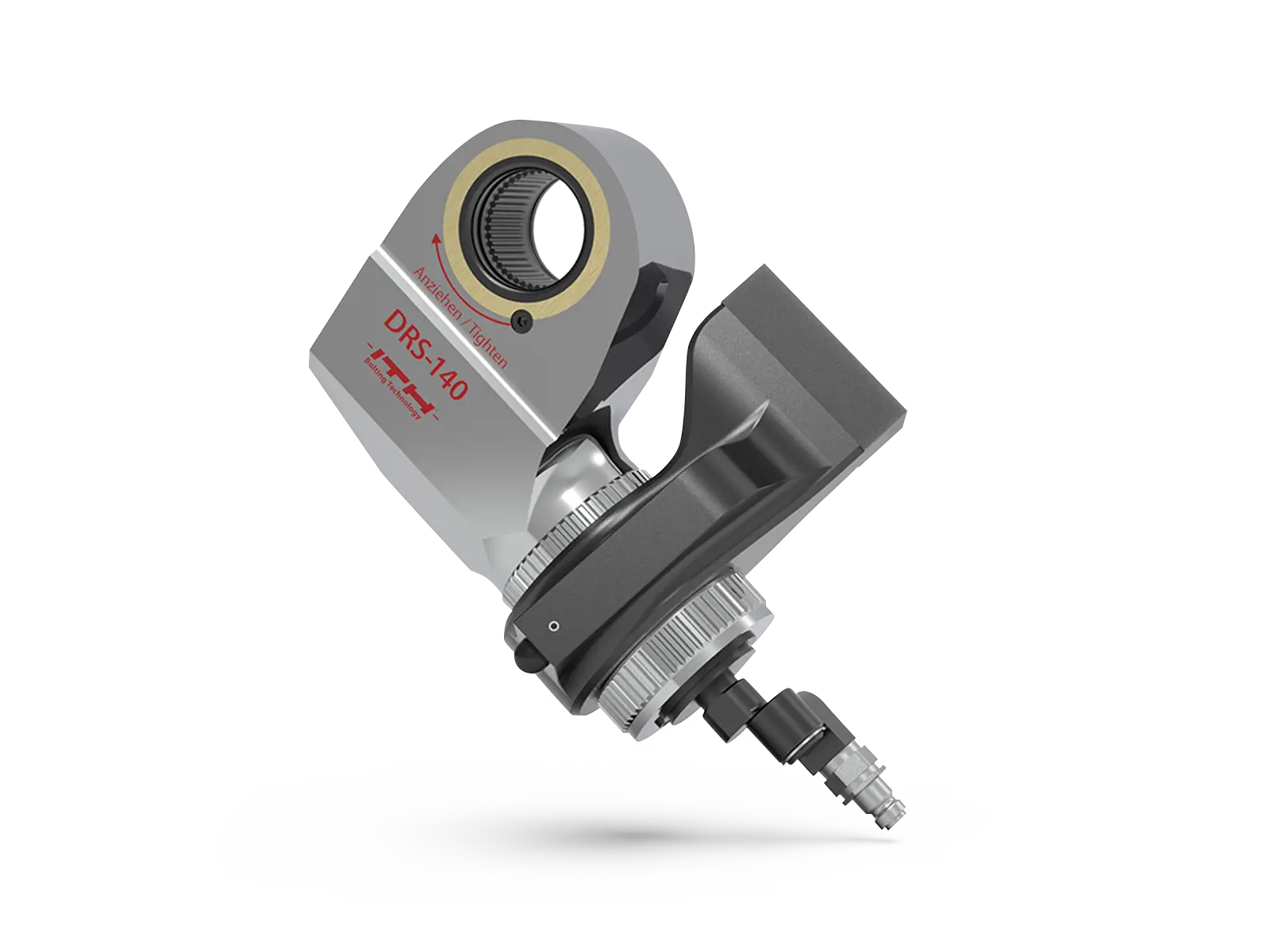

Verschiedene Ausführungen des Drehmomentschraubers Typ DRS mit diversen Abstützung

Efficiency

Space-saving 1-hose system

Flexibility

Reaction arm with 360° positioning

Compatibility

with standard power wrench sockets

Impressions

Product advantages

Information

Project reports

Impressions

Torque Wrench Type DRS in use

The Torque Wrench Type DRS impresses with its precise workmanship and innovative technology. Whether in demanding assembly conditions or in continuous use – this torque wrench guarantees maximum reliability and efficiency. Thanks to its compact design and flexible application options, it is the ideal choice for industrial bolting.

Advantages

Product benefits at a glance

The space-saving 1-hose system with automatic piston return is compatible with all ITH high-pressure units. Thanks to its closed casing, it is suitable for universal use. The square adapter allows the use of commercially available power wrench sockets – for maximum flexibility and efficiency.

Fine tooth mounting for various power wrench sockets.

External gearing with three horizontal steps to accommodate the reaction arm.

Tip lock for fixing the reaction arm, 360° turnable, rotating.

Weight-optimized reaction arm, can be mounted on both sides and positioned 360°.

Turn able, rotating, rotary connection for optimum positioning of the hydraulic hose.

Space-saving 1-hose system for efficient handling.

ITH Smart Tools

With ITH Smart Tools, you can make a wide variety of bolting tools simple and smart – regardless of the device type. Thanks to the cloud connection, you can detect, monitor and document assembly processes centrally, across locations and in real time. Benefit from maximum transparency, efficiency and traceability in your production.

Information

Torque Wrench Type DRS Specifications

Precision and flexibility combined
The DRS torque wrench from ITH sets / embedding new standards in industrial bolting technology. With its space-saving 1-hose system and automatic piston return, it offers efficient handling and is fully compatible with all ITH high-pressure units. The closed, chrome-plated steel housing makes it particularly strong and resistant and universally usable – ideal for demanding industrial applications.

Innovative technology for maximum performance

The fine-tooth mount allows the use of commercially available power wrench sockets and thus guarantees maximum flexibility. The turnable, rotating, swivel connection ensures optimum positioning of the hydraulic hose, while the asymmetrical, weight-optimized reaction arm with reinforced reaction shoe ensures precise application. Thanks to 360° positioning and simple fixing, the type DRS is usable in a variety of ways and offers maximum efficiency for complex bolting tasks.

For various socket wrench inserts and direct tightening of hexagon bolts.
System consisting of hydraulic cylinder, ratchet system and latch enables simple and quick repair work.
Chrome-plated steel housing for strong and resistant use.

Direct reaction arm for constant reaction arm conditions. An additional bending moment in the tool is avoided.
Turnable, rotating in two dimensions for optimum positioning of the hydraulic hose.
Space-saving 1-hose hydraulic connection.

Typ	Max. Drehmoment		L1		L2		B		R		H		Weight		Best.-Nr.
Typ	[Nm]	[ft·lb]	[mm]	[″]	[mm]	[″]	[mm]	[″]	[mm]	[″]	[mm]	[″]	[kg]	[lb]	Best.-Nr.
DRS 12	1,250	922	124	4.88	103	4.06	38	1.50	21.5	0.85	58	2.28	1.7	3.75	51.10001-5000
DRS 22	2,200	1,623	161	6.34	136	5.35	45	1.77	25	0.98	68	2.68	2.3	5.07	51.10004-5000
DRS 50	5,000	3,688	180	7.09	150	5.91	54	2.13	30	1.18	90	3.54	4.1	9.04	51.10006-5000
DRS 83	8,300	6,122	219	8.62	179	7.05	60	2.36	40	1.57	118	4.65	6.8	14.99	51.10008-5000
DRS 140	14,000	10,326	224	8.82	179	7.07	70	2.76	45	1.77	127	5.00	9.6	21.16	51.10010-5000
